HITL invoice extraction queue

A small AP team handles inbound invoices. PDFs land in storage, an agent extracts vendor, dates, line items, and totals into a typed Postgres row with a confidence score on every field, and the row either auto-approves or escalates to a queue. Reviewers sign in to a Vite + React app, work the queue together, and approve invoices one by one — at which point a second agent assigns GL accounting codes per line item.

The running app shows a paged invoice on the left, a structured form on the right populated by the extractor agent, a confidence pill next to every value, presence avatars showing which other reviewer is on the same item right now, and a per-item chat thread where reviewers can @agent with a hint (“the invoice number is in the top-right of page 2”) to make the agent re-run on a single field. New escalations stream into the queue without a refresh; approvals make rows vanish from every connected client at once.

The recipe’s protagonist is the structured-output-as-event-source pattern: the agent’s output isn’t a paragraph of text, it’s a typed row in Postgres. That row is queryable (you can join it against gl_codes later and ask “all approved invoices over $10k from this quarter”), it validates programmatically (sum of line items vs. total, before any human sees the queue), and — crucially for this recipe — it’s also the event that drives realtime: a row lands, every client sees it; a status flips, the row vanishes from the queue. No separate pub/sub. No hand-rolled event bus.

This recipe assumes you’ve worked through Recipe 01 — agent provisioning, KB uploads, and seed-script patterns aren’t re-taught here.

Powabase features used

Sources — uploaded PDFs land in ai.sources; the platform extracts page text + page images, which the recipe feeds to the extractor agent as context.
Knowledge Bases — one vendor-history KB used by the GL-coder agent to look up historical similar line items + their assigned GL codes via knowledge_base_search.
Agents — three of them: an extractor that reads a full document and emits the structured invoice shape; a field-extractor that re-runs on a single field with a reviewer hint; a GL-coder that fires after approval and assigns accounting codes per line item.
Sessions, streaming — implicit (same pattern as Recipe 01); each agent run gets a session, the platform handles history.
Auth (GoTrue) + RLS — reviewers sign in with email/password; RLS is configured for a shared workspace (every reviewer reads every item), which is the inverse of Recipe 01’s per-user scoping. The policy file calls this out as the recipe’s teaching moment.
Realtime — Postgres Changes — subscriptions on items, extraction_attempts, gl_codes, and chat_messages make the queue, the structured form, the GL codes panel, and the chat thread all live-update without polling.
Realtime — Presence — per-item channel item:<id>:viewers publishes { profile_id, display_name }. The item-detail page renders the avatars of whoever else is on the same item.

Why this combination

A multi-user review queue is the kind of feature that bolt-together stacks (one library for agents, another for vector search, another for realtime) make awkward. Each piece has its own delivery model and its own truth — the agent’s output sits in one place, the realtime fanout sits in another, and the application has to keep them in sync.

This recipe inverts that. The agent doesn’t emit a string; it emits a typed Postgres row. The row is the truth (every client reads from Postgres, RLS scopes who sees what), it’s the event (Postgres Changes fans the INSERT / UPDATE out to every connected client), and it’s the query target (you can join items against gl_codes and answer business questions in SQL). One representation, three roles.

This is the recipe-shape that exercises all three Powabase pillars together: intelligent ETL (PDF → typed fields), multi-agent workflow (extractor → field-extractor → GL-coder, with each handoff a typed row), structured data output (the typed row is queryable, validatable, and realtime-broadcastable). Recipe 01 demonstrates the workflow pillar in isolation; this recipe demonstrates what happens when all three meet on one plane.

Prerequisites

A Powabase project (this recipe was developed against cookbook-02)
OPENAI_API_KEY set in Project Settings → API Keys (the agents call the LLM)
Auth → Advanced Settings → Auto-confirm Email toggled ON (so sign-up establishes a session immediately for testing reviewer flows)
Node 20+ / npm
psql CLI for applying schema/policies
A modern Chrome/Firefox/Edge browser (the dev server is the recipe’s UI surface)

Architecture

This is what the recipe builds:

┌──────────────────────────────────────────────────────────────────────────┐
│  Powabase project                                                         │
│                                                                           │
│  Postgres ─────┬─ ai.sources           (uploaded PDFs + extraction)      │
│                ├─ ai.knowledge_bases   (vendor-history KB for GL coder)  │
│                ├─ ai.agents            (extractor / field-ext / gl-coder)│
│                │                                                          │
│                ├─ public.profiles      (display_name, is_agent)          │
│                ├─ public.items         (the queue: status, draft jsonb)  │
│                ├─ public.extraction_attempts  (append-only history)      │
│                ├─ public.gl_codes      (downstream output)               │
│                ├─ public.chat_messages (per-item thread)                 │
│                │                                                          │
│                └─ auth.users           (reviewers AND agent identities)  │
│                                                                           │
│  Realtime ─── Postgres Changes (items, gl_codes, extraction_attempts,    │
│               chat_messages) + Presence (per-item viewers)               │
│                                                                           │
│  Agents ──── extractor / field-extractor / gl-coder                      │
└─────────────────────────────────┬────────────────────────────────────────┘
                                   │
                                   │  REST + SSE (agent runs)
                                   │  WebSocket (Realtime: Postgres Changes
                                   │              + Presence)
                                   │
┌──────────────────────────────────┴────────────────────────────────────────┐
│  Vite + React + TypeScript + @supabase/supabase-js                        │
│                                                                            │
│   /signin, /signup    ─ GoTrue                                             │
│   /queue              ─ live list of escalated items                       │
│   /queue/:id          ─ item detail: page-image viewer + structured-form  │
│                          editor + presence avatars + chat thread          │
└────────────────────────────────────────────────────────────────────────────┘

A few details worth noting up front:

Agents are real auth users. Each of the three agents has a row in auth.users (created by the seed script via the GoTrue admin API) and a corresponding public.profiles row with is_agent = true. This keeps the schema symmetric — RLS policies don’t need or user_id is null branches, the chat-thread UI doesn’t special-case agent messages, and presence avatars render the same way for humans and agents alike.
The trigger for extraction is a recipe-side script, not a webhook. npm run trigger:extractions polls ai.sources for newly-extracted PDFs that don’t yet have an items row, runs the extractor against each one, and inserts the result. A --watch flag keeps it running for the live-demo phase. Production systems would use a Postgres trigger or webhook here.

Build it

Seven steps. Each one is independently runnable and CLI-verifiable before the UI lands. If you just want everything provisioned in one shot, jump to npm run seed.

1. Schema + auth foundation

schema.sql creates five tables: profiles (with display_name + is_agent), items (the queue, with a draft_extraction jsonb and a status enum), extraction_attempts (append-only history of every extraction attempt against an item), gl_codes (downstream output of the GL-coder), chat_messages (per-item thread). A BEFORE UPDATE trigger on items recomputes _arithmetic_valid on every patch — the client cannot be trusted to recompute on every patch path (inline edits, agent re-extractions, future bulk operations).

create table public.items (
  id                  uuid primary key default gen_random_uuid(),
  source_id           uuid not null,
  status              item_status not null default 'escalated',
  draft_extraction    jsonb,
  extraction_error    text,
  decided_by          uuid references public.profiles(id),
  decided_at          timestamptz,
  created_at          timestamptz not null default now(),
  updated_at          timestamptz not null default now()
);

policies.sql is the recipe’s first teaching moment: this is a shared workspace, not a per-user one. Every authenticated reviewer reads and writes every row. If you came from Recipe 01, you’ll reflexively reach for auth.uid() = user_id here — don’t. Per-user scoping defeats the point of a queue.

-- TEACHING MOMENT: All items / chat / history are SHARED across the team.
-- Recipe 01 scoped chat_sessions per-user with `auth.uid() = user_id`;
-- that's WRONG here. This is a shared-workspace queue — every reviewer
-- sees every item.
create policy items_read on public.items
  for select to authenticated using (true);

Apply with psql "$DATABASE_URI" -f schema.sql -f policies.sql. Then sign up via @supabase/supabase-js and confirm a profiles row landed for your user (the handle_new_user trigger does that automatically).

Run it

psql "$DATABASE_URI" -f schema.sql -f policies.sql
# then exercise the auth path however you prefer; signup-and-check is in
# seed-helpers.ts (used by `npm run seed`).

You should see five tables and matching policies in public.*.

2. Extractor agent → everything escalates

Provision the extractor agent. Its system prompt asks for the full structured invoice shape — vendor, invoice number, dates, line items, subtotal, tax, total — each field as { value, _confidence }. The agent reads the full document via context_override (no KB; this isn’t a search problem, the recipe-side code already has the page text from /api/sources/:id/page-texts):

const extractor = await api("/api/agents", {
  method: "POST",
  body: JSON.stringify({
    name: "extractor",
    model: "gpt-5.4-mini",
    system_prompt: EXTRACTOR_PROMPT,  // see seed-agents.ts
    settings: { reasoning_effort: "medium" },
  }),
});

npm run trigger:extractions polls ai.sources for rows whose extraction_status = 'extracted' and which don’t yet have an items row, fetches each source’s page text, calls the extractor with that text as context_override, and inserts the resulting items row. Without the gates yet, every result lands with status = 'escalated'.

Narrative scaffold. For now every extraction escalates; auto-approval gates land in step 4. If the queue is showing nothing auto-resolved, that is expected — the gates are deliberately decoupled from the extractor so the validation logic (per-field confidence, arithmetic, required fields) is the focus of its own step.

Run it

npm run generate-samples       # 6 sample PDFs into seed-content/
npm run trigger:extractions    # one-shot
psql "$DATABASE_URI" -c \
  "select id, status, draft_extraction->'vendor'->>'name' as vendor
   from items order by created_at desc;"

You should see one escalated row per uploaded sample, with draft_extraction.vendor.name populated.

The six samples are intentionally varied so each exercises a different gate or HITL path you’ll wire up in later steps:

Clean invoice — high-confidence everywhere, arithmetic checks out → auto-approves once gates are wired (step 4).
High-value invoice — auto-approves, but the GL-coder will flag it needs_cfo_review = true (step 4).
Tabular line-items invoice — clean prose fields but lower per-row confidence on the table → escalates.
Arithmetic mismatch — totals don’t sum (subtotal + tax ≠ total) → escalates on validation despite confident per-field extraction. The structured-output-earns-its-keep example.
Smudged / poorly-scanned invoice — low confidence on invoice_number (the extractor picks up a vendor-internal reference number from page 1 instead of the canonical invoice number on page 2). The demo of the chat-hint @-mention re-extraction in step 7.
Multi-currency / odd format — escalates on extractor caution; demonstrates manual reviewer field edits.

3. Field-extractor agent (re-run mechanic)

The field-extractor is a second agent, dedicated to re-running on a single field. Its inputs: the source page text, the current draft_extraction, a target_field (from a closed enum — see seed-agents.ts for the supported set), and a free-form hint from the reviewer. Its output: just { value, _confidence } for that one field.

The closed enum is the right level of expressiveness for the recipe. Supported field paths look like:

vendor.name
vendor.address
invoice_number
invoice_date
due_date
subtotal
tax
total
line_items[N].description
line_items[N].quantity
line_items[N].unit_price
line_items[N].amount

A small custom parser splits on . and [], validates the leaf path, and applies the patch.

probe-field-extractor.ts exercises the flow from the CLI: pick an item, pick a field, supply a hint, watch a new extraction_attempts row land and the corresponding leaf on items.draft_extraction get patched. The append-only invariant on extraction_attempts (no UPDATE / DELETE policies) means the history is preserved.

Run it

npm run probe:field-extract
# pass --item <uuid> --field invoice_number --hint "..." or rely on
# the script's defaults (it picks the first escalated item).

You should see attempt #1 (the original full extraction from step 2), then attempt #2 — same item, target_field = 'invoice_number', attempted_by = <field-extractor agent's profile id>, and the new value reflected on items.draft_extraction.invoice_number.

4. GL-coder downstream + auto-approval gates

Two paired concepts here. (a) The GL-coder agent consumes an approved item — it reads draft_extraction.line_items from context and uses knowledge_base_search against the vendor-history KB to pull similar historical line items + their assigned codes. Output: per-line GL code + rationale + a needs_cfo_review flag (true if amount > $5k or new vendor or unusual category). Results land in gl_codes, one row per line item. (b) The auto-approval gates decide whether an extraction goes straight to GL-coding or escalates to a human:

Per-field confidence ≥ 0.85 for every field.
Arithmetic validates: sum(line_items[].amount) + tax = total, within $0.02 tolerance for rounding.
All required fields present (vendor.name, invoice_number, total, at least one line item).

If all three pass → status flips to approved and the GL-coder fires immediately. Otherwise → escalated, lands in the queue. The arithmetic check is the structured-output-earns-its-keep moment: the agent could be 0.95 confident on every individual field and still produce an extraction whose totals don’t math. Programmable validation against the typed row catches that — something a string-output RAG demo cannot do.

Run it

npm run probe:gl-coder       # approve a clean item; watch gl_codes appear
npm run trigger:extractions  # re-run; some samples now auto-approve
npm run dogfood              # full assertion script: confirms the chain

Then verify the typed-handoff chain (extracted invoice → approved item → GL codes) by joining tables in psql:

select i.id, i.draft_extraction->'vendor'->>'name' as vendor,
       (i.draft_extraction->'total'->>'value')::numeric as total,
       array_agg(g.gl_code) as codes
from items i
join gl_codes g on g.item_id = i.id
where i.status = 'approved'
group by i.id;

The chain lands in queryable form — the recipe’s aha moment. Three agents, two table handoffs, one query.

5. Queue UI (no realtime)

The Vite app under code/ has signin/signup pages plus the queue. The queue page does an initial fetch of escalated items and renders a list (vendor, total, due date, page-image thumbnail). Clicking a row takes you to /queue/:id, a two-column detail view: page-image viewer on the left, structured-edit form on the right with a confidence pill next to every field, plus Approve / Reject buttons in the footer.

Inline edits patch items.draft_extraction and append a new extraction_attempts row authored by the reviewer. The Approve button flips status to approved and then fires the GL-coder client-side; on return, the GL codes panel fills in.

// On Approve:
await supabase
  .from("items")
  .update({ status: "approved", decided_by: userId, decided_at: new Date() })
  .eq("id", itemId);

await fetch(`${BASE_URL}/api/agents/${GL_CODER_ID}/run`, {
  method: "POST",
  headers: { Authorization: `Bearer ${userToken}` /* ... */ },
  body: JSON.stringify({ message: buildGlCoderPrompt(item) }),
});

Verify the full HITL flow in one browser window: trigger extractions, open an escalated item, edit a field, approve, watch the GL codes panel fill. The app works without any realtime — that’s the deliberate setup for step 6.

Run it

cd code
npm install
npm run dev
# open http://localhost:5173, sign up, work the queue

6. Postgres Changes on the queue

Subscribe to Postgres Changes on items, gl_codes, and extraction_attempts. The natural triggers — new escalations from npm run trigger:extractions -- --watch running in a side terminal, approvals making rows vanish from the queue, GL codes appearing on detail when the downstream agent finishes — demonstrate the realtime layer without contrivance.

const channel = supabase
  .channel("queue-items")
  .on("postgres_changes",
      { event: "*", schema: "public", table: "items" },
      (payload) => {
        // payload.eventType: 'INSERT' | 'UPDATE' | 'DELETE'
        // payload.new / payload.old: the row
        applyChangeToLocalQueue(payload);
      })
  .subscribe();

The lesson: rows changing in Postgres become events on the client, no polling. The queue is correctly modeled in steps 1–5; realtime in step 6 is a progressive enhancement on top of that model, not a mandatory piece of infrastructure.

A small reconnect pattern: the Supabase JS client auto-reconnects on transient WebSocket drops, but events that happened during the gap are gone. On SUBSCRIBED (which fires both on first subscribe and after reconnect), the channel handler refetches the queue/item via REST so any missed updates are caught. About five lines in the handler.

Run it

# Terminal A:
npm run trigger:extractions -- --watch
# Terminal B:
cd code && npm run dev
# open two browser windows side-by-side; sign in as different users

Drop a new PDF in seed-content/, watch it land in both browser windows’ queue list at the same time. Approve in window A; watch the row vanish from window B’s list. GL codes panel fills in window A’s detail view as the GL-coder finishes.

7. Presence + chat thread + @agent targeted re-extraction

Three things that cluster as one feature: “the room has other people and an agent in it, and you can talk to all of them.”

Presence: on item-detail mount, join the item:<id>:viewers channel and track({ profile_id, display_name }). The detail page renders avatars of all currently-viewing reviewers.
Chat thread: per-item chat_messages, realtime-subscribed via the Postgres Changes wiring from step 6. Reviewers chat amongst themselves about the item.
@agent re-extraction: a chat message containing @agent plus a hint triggers client-side construction of a single-field re-extraction prompt against the field-extractor (the agent from step 3). On response, the client (a) patches the target field on items.draft_extraction, (b) inserts a new extraction_attempts row, (c) inserts a chat_messages row authored by the field-extractor’s profile that links back to the attempt. Every other reviewer sees the field update and the agent’s reply land at the same time, via the Postgres Changes subscription wired up in step 6.

const presence = supabase
  .channel(`item:${itemId}:viewers`, {
    config: { presence: { key: profileId } },
  })
  .on("presence", { event: "sync" }, () => {
    setViewers(presence.presenceState());
  })
  .subscribe(async (status) => {
    if (status === "SUBSCRIBED") {
      await presence.track({ profile_id: profileId, display_name });
    }
  });

Run it

Open the same item in two browser windows, signed in as two different users. Window A posts:

@agent the invoice number is in the top-right of page 2,
format INV-YYYY-####, not the page-1 reference number you picked up.

In window B (without doing anything), the invoice_number field should update on the form, and the field-extractor’s reply should land in the chat thread within a few seconds. Window B’s avatar should be visible in window A’s presence pills, and vice versa.

Inspect in Studio

Per the cookbook’s “code-default, Studio companion” principle, four optional Studio moments are worth a screenshot. None are required to complete the recipe.

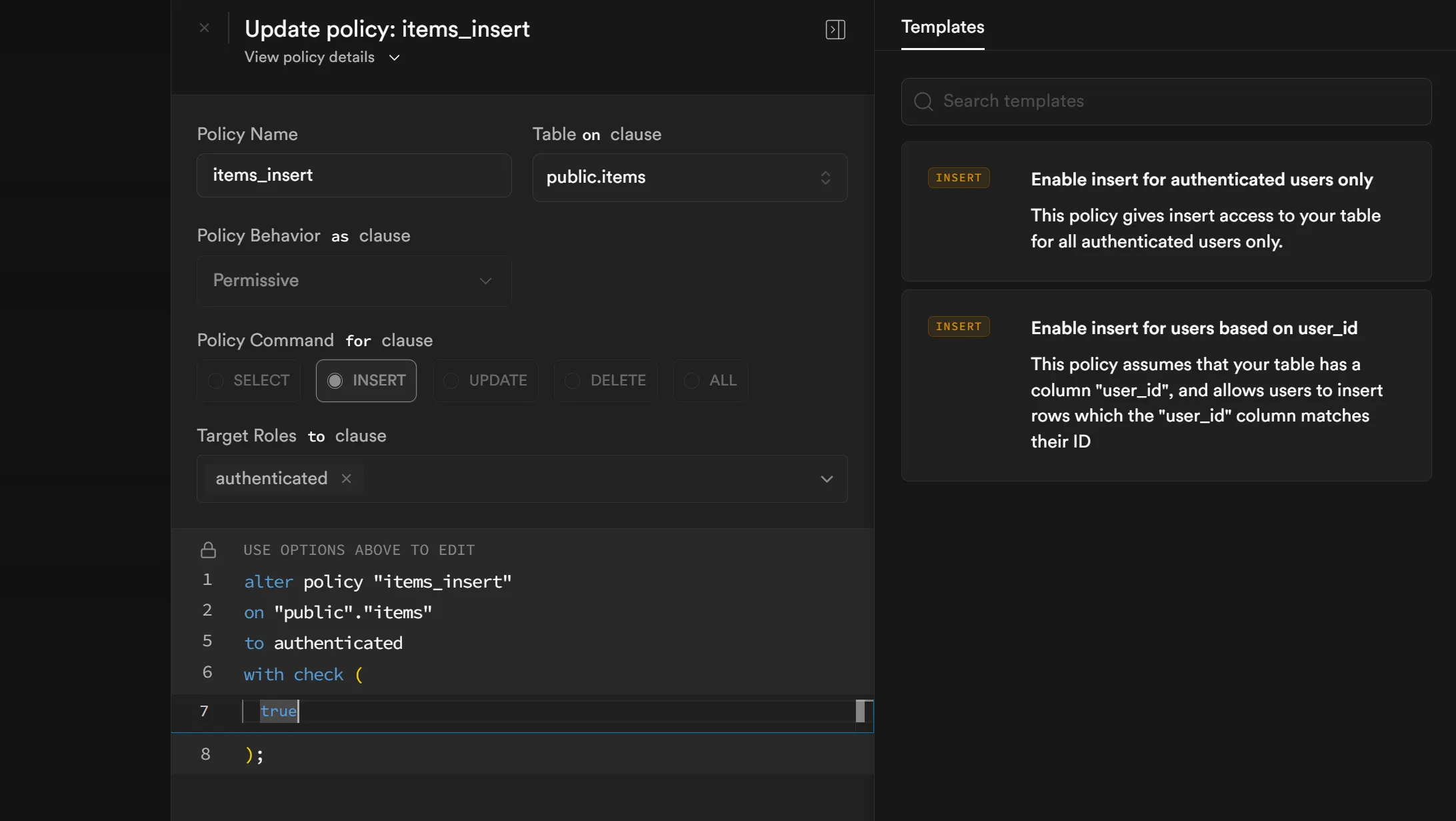

After step 1 — Authentication → Policies. The shared-workspace RLS on items rendered in Studio’s policy UI. Pairs with the recipe’s narrative call-out — readers see why this policy looks different from Recipe 01’s per-user-scoped policy when they look at it in the same place.

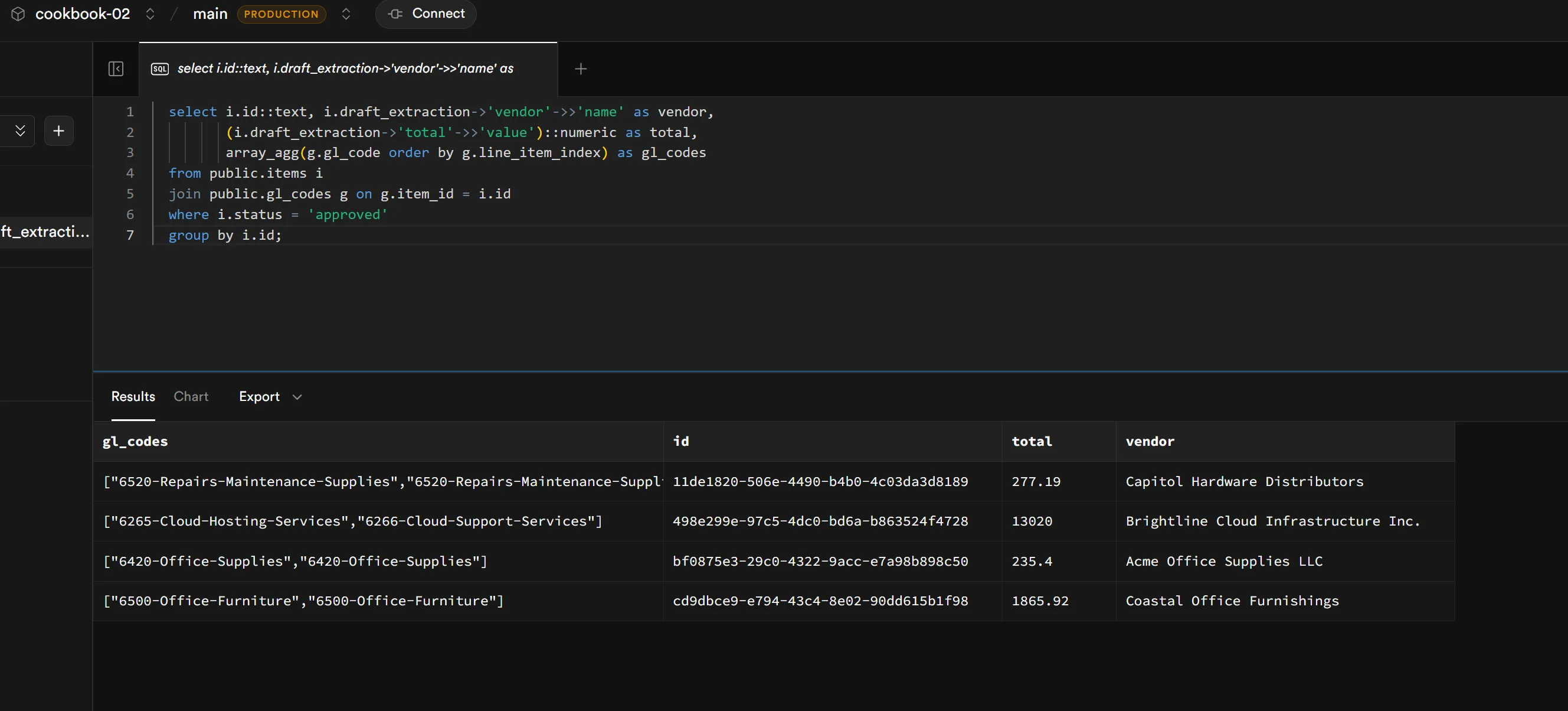

After step 4 — SQL Editor. Run the typed-handoff chain join query against the now-populated tables. The result collapses the chain (extracted invoice → approved item → assigned GL codes) into a single result set — the structured-output-as-queryable moment.
After step 6 — Realtime → Inspector. Subscribe to Postgres Changes on public.items directly from Studio. With the inspector open, run npm run trigger:extractions against a fresh source upload; watch the INSERT event arrive in the inspector pane in real time, alongside the same event firing into the recipe’s React UI. Demystifies what Postgres Changes look like on the wire.

Screenshot pending — capture once Studio’s Realtime Inspector tab is wired up.
After step 7 — Realtime → Inspector (presence). Open an item in two browser windows and inspect the per-item presence channel from Studio. The inspector shows track, sync, and leave payloads exchange while the app’s avatars update — wiring the abstract “Presence” feature to the concrete WebSocket frames.

Screenshot pending — capture once Studio’s Realtime Inspector tab is wired up.

Studio’s UI evolves; readers should re-capture from their own project for accuracy.

Run it

See run.md for the full setup-and-run sequence.

Variations

Production-grade agent authorship under RLS — replace the v1 “trust the client” mechanic for chat / extraction_attempts inserts with a server-mediated path (Edge Function or RPC that signs agent messages against a session-scoped token). Closes the spoofing gap flagged below in Platform notes. Its own follow-on recipe.
Role-based escalation chain — add admin / CFO roles; high-value items (needs_cfo_review = true) require a second approval step. The most natural follow-on; about one short PR’s worth of work on top of this recipe.
PDF text-layer + bbox highlighting — replace the page-image viewer with PDF.js + the platform’s source bbox metadata; clicking a structured field scrolls the PDF to the cited region. Its own follow-on recipe.
Domain swap — replace invoices with claims, contracts, or resumes. The schema + extractor change; everything else (queue, presence, HITL flow) is unchanged.
Auto-approval threshold tuning — surface the threshold (0.85) and arithmetic tolerance ($0.02) as a settings UI; let admins adjust per category.
Real downstream actions — replace the GL-coder’s recipe-side database write with a real sink: write to QuickBooks, generate a bank-payment file, push to an ERP.
Webhook-driven trigger — replace the recipe-side polling for newly-extracted sources with a Postgres trigger or Edge Function that fires the extractor on ai.sources insertion.
Typing indicators / cursor sharing — Broadcast for ephemeral signals; not load-bearing but a polish beat. (This recipe uses Postgres Changes + Presence and intentionally skips Broadcast — the lesson is sharper with structured rows carrying the load.)

Platform notes

A few v1 caveats — none block running the recipe, but a security-minded reader should know what’s traded off.

Client-trusted agent authorship. The chat_insert and attempts_insert policies have a real hole: an authenticated reviewer can craft a request that inserts a chat_messages row with author_id set to any agent profile, with no constraint linking that row to an actual agent run. The recipe’s mechanic relies on the client orchestrating the @agent → field-extractor-call → field-patch sequence, and adding signing/mediation would obscure the lesson. A production system would route agent-authored writes through a server-side mediator (Edge Function or RPC) that verifies the prior @agent mention exists and signs the agent’s reply against a session-scoped token. Linked from the Variations section above.
GL-coder fires client-side after Approve. The Approve button flips status to approved and then calls the GL-coder. If the client crashes between those two calls, the item ends up approved with no GL codes and no automatic retry. Acknowledged. A production system would run the approve-and-code path as a single server-mediated step (a Postgres function that flips status + emits a pg_notify consumed by an agent runner, or a Postgres trigger that invokes the agent runtime via a webhook).
Page-image viewer is page-image-only. No bbox-aware highlighting, no clickable citations, no synchronized scrolling between the form and the PDF. Page images plus the structured form beside them are enough to teach realtime + HITL + structured output without the PDF.js + coordinate-mapping rabbit hole. Deferred to a follow-on recipe (see Variations).

Recipe 01 — Multi-agent customer support team (Supervisor): the multi-agent orchestration story. Read it first if “agents” + “compose multiple in a workflow” is new — the agent-provisioning, KB-uploads, and seed-script patterns aren’t re-taught here.
Recipe 04 — AI ticket auto-triage with vision + DB tool (when published): the full-auto sibling of this recipe; visual ticket inputs, no HITL queue.
Recipe NN — Production-grade agent authorship under RLS (when published): replaces this recipe’s client-trusted authorship with server-mediated signing. Direct successor.

HITL invoice extraction queue

HITL invoice extraction queue

Powabase features used

Why this combination

Prerequisites

Architecture

Build it

1. Schema + auth foundation

2. Extractor agent → everything escalates

3. Field-extractor agent (re-run mechanic)

4. GL-coder downstream + auto-approval gates

5. Queue UI (no realtime)

6. Postgres Changes on the queue

7. Presence + chat thread + @agent targeted re-extraction

Inspect in Studio

Run it

Variations

Platform notes

Related recipes
